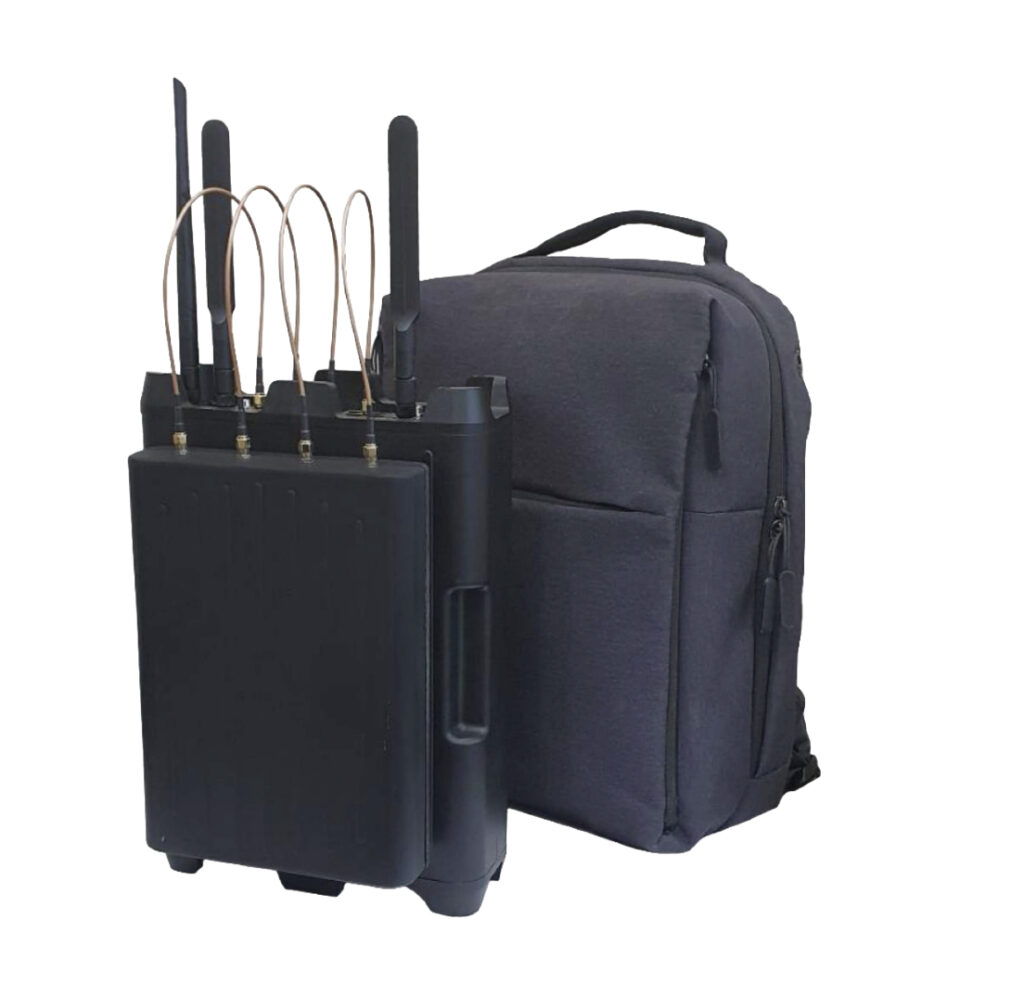

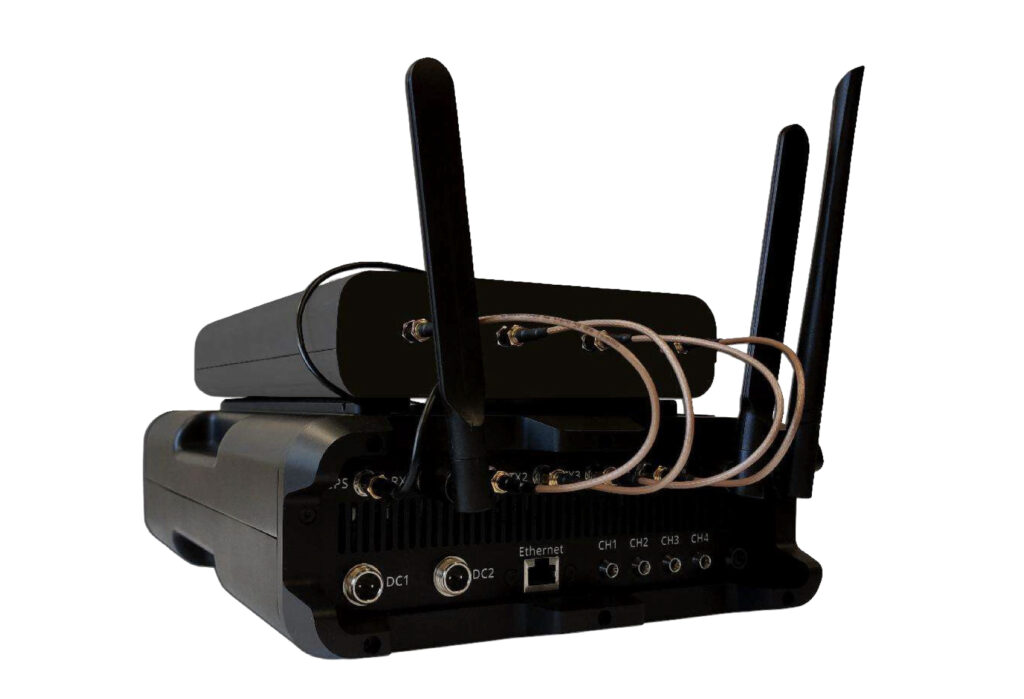

Backpack IMSI Catcher – Advanced 4-Channel MITM Interception System for Tactical Operations
The Backpack IMSI Catcher is a next-generation 4-Channel IMSI Catcher designed for covert field intelligence, law-enforcement surveillance, and military operations. Built on advanced SDR intelligence technology, the system supports GSM/UMTS/LTE/5G interception, enabling real-time extraction and analysis of mobile subscriber identities.
With its MITM interception system, the device performs IMSI & IMEI extraction, MSISDN identification, TMSI correlation, and selective service manipulation. It integrates base station emulation (BTS) to control subscriber connectivity, while supporting silent call, downgrade (2G/3G/4G/5G), selective accept/reject, selective denial of service, and handover forcing modes for full operational flexibility.
The tactical backpack surveillance system offers up to four simultaneous channels with customizable frequency bands, covering 400 MHz to 2700 MHz and supporting B1/B3/B5/B7/B8/B20 and others depending on user requirements. Engineered for ruggedized field deployment, the system provides long-range operation (up to 150 m in urban areas) and features an autonomous power supply, high-power BTS modules, and intuitive notebook/tablet control.
Real-time visualization tools include cellular mapping, direction-finding support, and full subscriber tracking capabilities, allowing operators to identify roaming devices, map movement, and correlate identities. Combined with Wi-Fi/LAN remote console, GPS positioning, and SDR-based fast reconfiguration, this portable system provides unmatched versatility for tactical intelligence missions.
Technical Specifications
Category | Specification |
|---|---|
System Type | 4-Channel Backpack IMSI Catcher / MITM Interception System |
Cellular Technologies Supported | GSM, UMTS (3G), LTE (4G), 5G (NSA/SA depending on region) |
Number of Channels | 4 transmitting channels (BS→ST), 4 receiving channels (ST→BS) |
Transmitter Power | Average 34 dBm (2–3 W) per channel; software adjustable 0 → max output power |
Standard Frequency Bands | B1: 1920–1980 / 2110–2170 MHz B3: 1710–1785 / 1805–1880 MHz B5: 824–849 / 869–894 MHz B7: 2500–2570 / 2620–2690 MHz B8: 880–915 / 925–960 MHz B20: 832–862 / 791–821 MHz |
Additional Frequency Ranges | Customizable based on customer requirements |
SDR Technology | Supports dynamic reconfiguration & fast switching between cellular technologies |
Identity Extraction | IMSI, IMEI, MSISDN, TMSI, GUTI, device model (TAC), origin network & roaming status |
MITM Interception Capabilities | Silent call, call forwarding visualization, SMS sending, targeted identity extraction, mass MSISDN extraction |
Service Manipulation | Voice/SMS interception, two-way communication relay, control of UE ↔ BTS connections |
GSM Operational Modes | Accept mode, Reject mode, Selective accept, Selective reject, Selective denial of service, Selective handover |
UMTS Operational Modes | Reject mode, Mass handover, Selective handover, Blocking mode, Selective denial of service |
LTE/5G Operational Modes | Reject mode, Handover mode, Selective handover mode |
Downgrade Capability | GSM ↔ UMTS ↔ LTE/5G downgrade (4G→3G→2G) |
RF Analysis & Scanning | Band scan, RF parameter collection (MCC, MNC, LAC, CID, PSC, RAC, EARFCN, TAC, PCI) |
Target Correlation | Pre/Post analysis, IMSI/IMEI matching, subscriber mapping across time/location |
Real-Time Display | Cellular map display for IMSI/GUTI/TMSI tracking |
Connectivity | LAN, Wi-Fi remote console, GPS positioning |
User Interface | Notebook / tablet / mobile-device control interface |
Power Supply | External 12–24 VDC input; autonomous power supply unit included |
Power Consumption | 150 W |
Operational Range | Up to 150 m in urban conditions (LOS & environment dependent) |
Construction | Ruggedized backpack design |
Approximate Dimensions | 250 × 380 × 96 mm |
Standard Delivery Set | RX/TX antennas (790–2700 MHz), SDR BTS modules (2G/3G/4G), tablet workstation, universal handheld direction finder, autonomous power supply, transport case |
Optional Module: Clone Unit | Supports up to 8 transceivers; band scan, subscriber registration, incoming/outgoing relay |
Advantages & Benefits
This backpack IMSI catcher provides multi-channel interception, full subscriber identity extraction, and complete MITM control with selective modes. Its rugged, portable design enables covert deployment, while SDR technology supports fast reconfiguration and remote operation. Real-time intelligence tools, including cellular mapping and RF analysis, enhance tactical situational awareness.
Multi-Channel Tactical Interception
• 4-channel simultaneous operation across any cellular technology (2G/3G/4G/5G). • Supports up to 6 independent frequency bands.
Complete Subscriber Identity Extraction
• IMSI, IMEI, MSISDN, TMSI, GUTI, network origin, manufacturer, model. • Mass or targeted MSISDN extraction modes.
Full MITM Control with Selective Modes
• Accept / reject / selective accept / selective reject. • Selective denial of service. • Handover forcing for GSM/UMTS/LTE/5G. • Silent call & covert interception support.
SDR-Based Fast Reconfiguration
• Rapid switching between frequency bands and technologies. • Remote Wi-Fi/LAN operation using notebook/tablet GUI.
Application Scenarios
Law Enforcement & Public Security
• Criminal network monitoring • Covert operations needing identity extraction
Military & Tactical Intelligence
• Battlefield cellular mapping • Identifying hostile communications
Counter-Terrorism Operations
• Rapid subscriber identification • Tracking targets inside buildings or city blocks
Border & Critical Infrastructure Protection
• Detecting unauthorized SIM/IMEI devices • Monitoring roaming or foreign network subscribers
